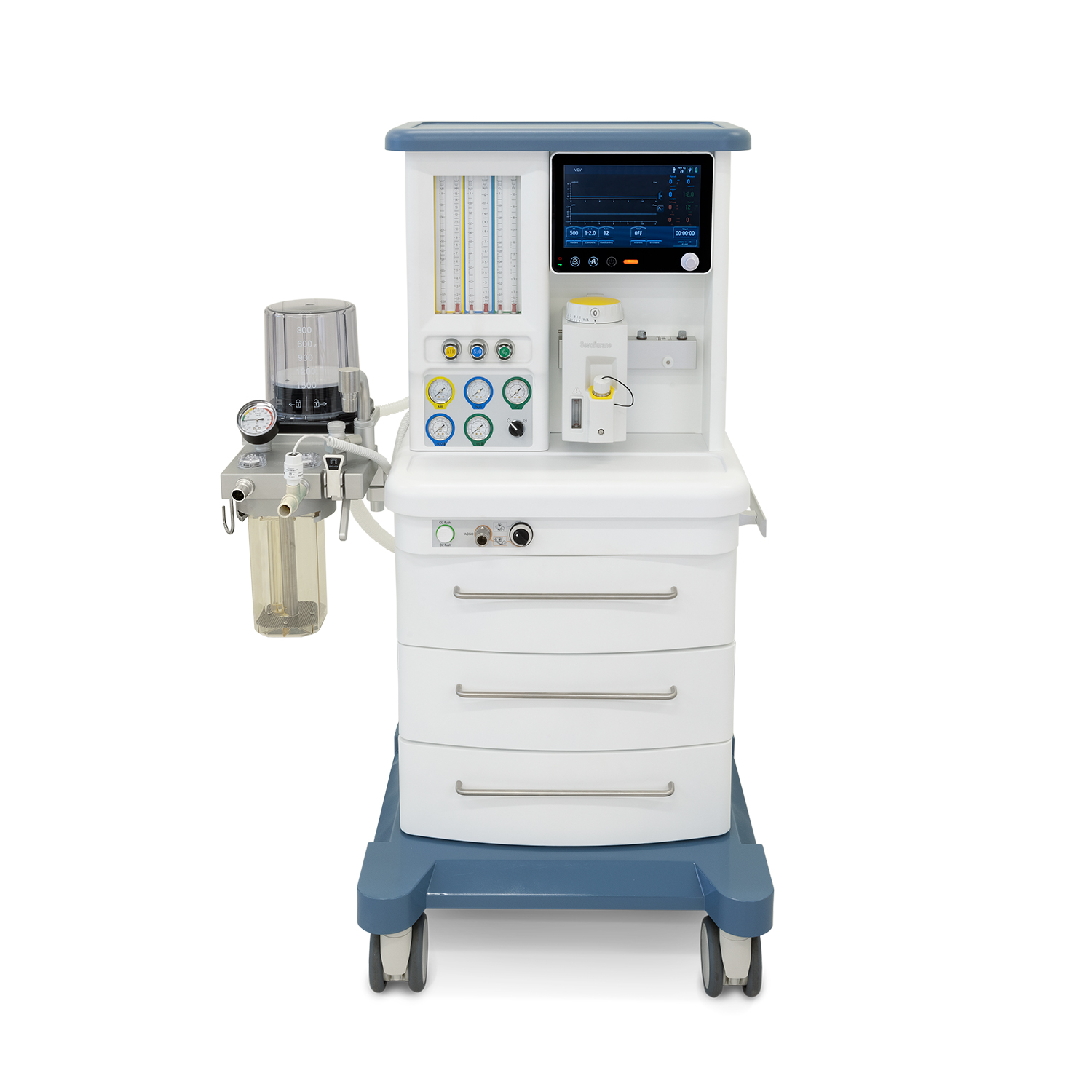

Features

• 10.2” high-definition touchscreen display

• Fully loaded with all major modes of anesthesia ventilation(See specification)

• Includes O2, N2O, and Air with 6-flow tubes

• Auxiliary O2 input included for nasal cannula and other O2 delivery uses

• Selectatec mounting bar

• Two vaporizer mount on back bar

• Optional: Pin yoke system (O2 and N2O)

  ‍

Specifications

• Anesthesia Ventilation Modes

VCV

PCV

SIMV-VC

SIMV-PC

PSV

Manual/Spont

Standby

Optional: SIMV-PRVC

• Setting Ranges

Tidal volume: 50 – 1500 mL (optional: 10 – 1500 mL)

Respiratory rate: 1 – 100 bpm

Inspiratory time: 0.1 - 10 seconds

Percentage of inspiratory pause: 0 – 50%

PEEP: Off, 3 – 20 cm H₂O

Pressure support: 0 – 70 cm H₂O

Flow trigger: 0.5 - 20 L per minute

Pressure trigger: 0 – 20 cm H₂O

PSV insp termination level: 5 – 80%

• Monitored Parameters

Inspiratory tidal volume: 0 – 2500 mL

Expiratory tidal volume: 0 – 2500 mL

Spontaneous minute ventilation: 0 – 60 L per minute

Minute ventilation: 0 – 60 mL per minute

Respiratory ratio: 4:1 to 1:10

Compliance: 0 – 300 mL/cm H₂O

Respiratory ratio: 30:1 to 1:150

Peak airway pressure: 0 – 100 cm H₂O

Mean airway pressure: 0 – 100 cm H₂0

PEEP: 0 – 100 cm H2O

Inspiratory plateau pressure: 0 – 100 cm H₂O

FiO₂ (optional): 15 – 100%
